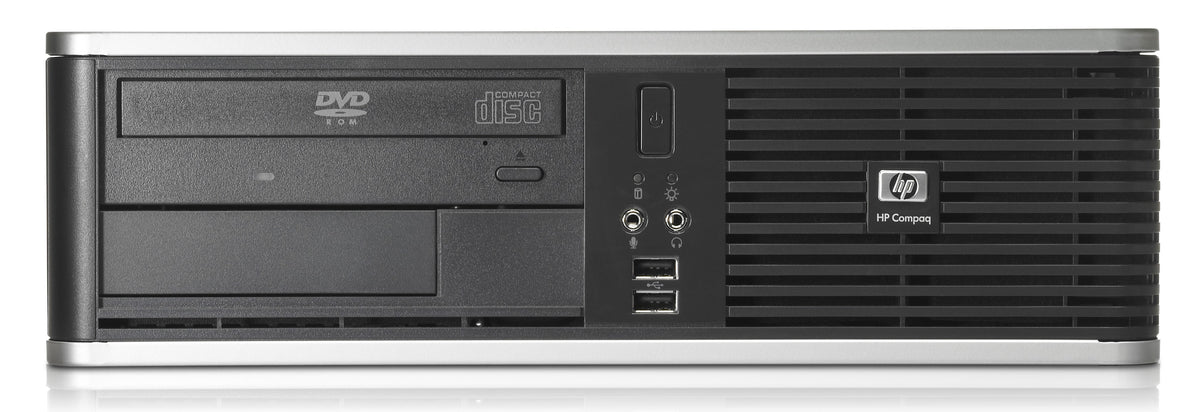

HP Compaq dc7800p Intel Core2 Duo Processor E6750 2G/160G DVD+/-RW WVST Bus Small

Specifikationer

Audio

Ljudsystem	Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker
Audio inkluderad	Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker

Minne

Internminne	2 GB
Typ av internminne	DDR2-SDRAM

Design

Ursprungsland	Kina
Uppgraderingstyp	Windows Vista capable

Övrigt

Drive bays	1 external 5.25 inch, 1 external 3.5 inch\n1 internal 3.5 inch
Säkerhetsegenskaper	Kensington Lock, Solenoid Hood Lock / Sensor

Grafiken

Videoadapter, bus	PCI Express x16
Videokort egenskaper	3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 400 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color Depth: 32 bits/pixel; Multi-display Support: 2 displays can be supported via the motherboard's VGA connectors and DVI ADD2 card\nIntel Graphics Media Accelerator 3100\n<85 Hz @ 1920x1440, 75 Hz @ 2048x1536
Grafikkortsupplösning	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536
Maximalt grafikadapterminne	0,256 GB

Nätverk

Modemtyp	N
Nätverksegenskaper	Integrated Intel 82566DM Gigabit Network Connection

Prestanda

Produkttyp	PC

Processor

TCASE	72 ° C
Busstyp	FSB
Stegning	G0
Processor	E6750
Die-storlek	143 mm ²
FSB-paritet	Nej
Processorserie	Intel Core 2 Duo E6000 Series
Processorfamilj	Intel® Core™2 Duo
Processorsockel	LGA 775 (Socket T)
Processorteknik	Intel vPro
Processorkärnor	2
Processortrådar	2
Processorfrekvens	2,66 GHz
Processorns cache	4 MB
Processorlitografi	65 nm
Processorns kodnamn	Conroe
Processorns cachetyp	L2
Processortillverkare	Intel
Antal Die Transistorer	291 M
Processor främre buss	1333 MHz
Processor med ECC-stöd	Nej
Processorns driftlägen	64-bit
Värmeavledningseffekt (TDP)	65 W
CPU multiplikatorn (buss / core-förhållande)	8

Certifikat

Certifiering	ENERGY STAR qualified; EPEAT Gold; 80% efficient power supply

Egenskaper

Säkerhetshantering	Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader
Funktioner för hanterbarhet	Intel vPro technology enabled, helps to lower IT costs and simplify manageability

Miljökrav

Relativ fuktighet	10 - 90%
Temperatur vid drift	10 - 35 ° C
Fuktighet (förvaring)	5 - 95%
Temperaturintervall (förvaring)	-30 - 60 ° C
Höjd över havet i avstängt läge	9144
Intervall för relativ operativ luftfuktighet	10 - 90%
Icke-fungerande relativ luftfuktighet (icke kondenserande)	5 - 90%

Multimedia

Multimedia	Integrated High Definition audio with ADI1884 codec (all ports are stereo)

Programvara

LAN drivrutin	Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000
Applikationer som stöds	Windows Vista Premium ready
Medföljande programvara	On some models only (not included with FreeDOS): HP ProtectTools Security Solutions, HP OpenView Configuration Management Solutions Agent, HP Backup and Recovery Manager, HP Insight Diagnostics (available via HP Backup and Recovery Manager), HP Client Foundation Suite (HP Client Manager, HP Systems Insight Manager, Altiris Local Recovery Pro Connector, Altiris Inventory Solution, Altiris Deployment Solution), HP Client Premium Suite (HP Client Manager, HP Systems Insight Manager Connector, HP OpenView Connector, Altiris Connector Solution, Altiris Local Recovery Pro, Altiris Audit Express, Altiris Client Management Suite Level 1), Computer Setup Utility, McAfee AntiVirus trial version, Roxio Easy Media Creator 9.0\nOptional preloaded software, only for certain configurations: HP Total Care Advisor, PDF Complete, Computrace for Desktops, Verdiem Surveyor agent, InterVideo WinDVD 5.0, Microsoft Office 2007 Basic, Microsoft Office 2007 Professional, Microsoft Office 2007 Small Business, Microsoft Internet Explorer with Google Toolbar
Kompatibla operativsystem	Genuine Windows XP Home 32; Genuine Windows Vista Enterprise 32; Genuine Windows Vista Enterprise 64
Installerat operativsystem	Windows Vista Business

Tangentbord

Pekredskap	HP PS/2 2-Button Optical Scroll Mouse
Tangentbordstyp	HP PS/2

Anslutningar

Externa anslutningar	Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, audio ports
Notering för bakre portar	6 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 RJ-45; 1 external VGA monitor; 1 audio in; 1 audio out

Lagringsmedia

Diskettenhet	Optional
Hårddiskstyp	160 GB
Optisk enhetstyp	DVD Super Multi
Hårddiskkontroller	SATA 3.0Gb/s NCQ SMART VI
Styrenhet för disksubsystem	SATA 3.0Gb/s
Hårddiskens rotationshastighet	7200 RPM

Vikt & dimension

Djup	378 mm
Vikt	8,5 kg
Bredd	337 mm
Höjd	100 mm
Storlek	33,8 cm (13.3")
Vikt (imperial)	18.75 lb

Expansionsplatser

Expansionsplatser	1 low-profile PCI, 2 full-height PCI (optional), 1 low-profile PCI Express x16, 2 low-profile PCI Express x1

Strömtillförsel

Energistandard	Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; Rated Input Current 80 Plus: 3.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation: Typical 198 btu/hr (50 kg-cal/hr) Maximum 1260 btu/hr (318 kg-cal/hr); System Heat Dissipation 80 Plus: Typical 150 btu/hr (38 kg-cal/hr), Maximum 1024 btu/hr (258 kg-cal/hr; Power Supply Fan: 80 mm variable speed, Power Consumption in ES Mode – Suspend to RAM (S3) (Instantly Available PC): <2.7 W
Nätaggregatstyp	240W 80 Plus Active PFC
Strömförsörjning	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC (80% High Efficiency)\nOperating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; Rated Input Current 80 Plus: 3.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation: Typical 198 btu/hr (50 kg-cal/hr) Maximum 1260 btu/hr (318 kg-cal/hr); System Heat Dissipation 80 Plus: Typical 150 btu/hr (38 kg-cal/hr), Maximum 1024 btu/hr (258 kg-cal/hr; Power Supply Fan: 80 mm variable speed, Power Consumption in ES Mode – Suspend to RAM (S3) (Instantly Available PC): <2.7 W
Strömförbrukning (vanlig)	240 W

Processor specialfunktioner

Intel® 64	Ja
Idle stater	Ja
Processorkod	SLA9V
Intel® FDI-teknik	Nej
Intel® Insider™	Nej
ARK-ID för processor	30784
Inbäddade alternativ	Nej
Intel® InTru™ 3D-teknik	Nej
Intel® Flex minnesåtkomst	Nej
Intel® Snabb Memory Access	Nej
Intel Clear Video Technology	Nej
Termiska övervakningsteknik	Ja
Execute Disable Bit-säkerhet	Ja
Intel® Turbo Boost Technology	Nej
Etisk processor (Conflict Free)	Nej
Intel® Dual Display Kan Teknik	Nej
Intel® Förbättrad Halt State	Ja
Intel® Rapid Storage Technology	Nej
Processorns förpackningsstorlek	37.5 x 37.5 mm
Intel® Efterfrågan Baserad Växla	Nej
Intel® Quick Sync Video Technology	Nej
Intel® Trusted Execution Technology	Ja
Förstärkt Intel Speedstep Technology	Ja
Intel Virtualization Technology (VT-x)	Ja
Intel® Stöldskydd Teknik (Intel® AT)	Nej
Intel® Wireless Display (Intel® WiDi)	Nej
Intel® My WiFi Technology (Intel® MWT)	Nej
Intel® VT-x med utökad Sida Tabeller (EPT)	Nej
Intel® AES nya instruktioner (Intel® AES-NI)	Nej
Intel® Clear Video HD Technology (Intel® CVT HD)	Nej
Intel® Virtualization Technology for Directed I/O (VT-d)	Nej
Intel® Hyper Threading Technology (Intel® HT Technology)	Nej
Intel® Clear Video Technology för MID (Intel® CVT for MID)	Nej
